Sunday, 30 October 2011

made a vid

I took some artistic license making this but I'm not apologising

Wednesday, 26 October 2011

first proper ride out

got a sunny day after rejetting the bike and got some pictures taken of the ride.

Saturday, 17 September 2011

tracker pictures

Got a good hours worth of new photographs of the track today.


Sunday, 28 August 2011

the paint's arrived

Its here!

the tracker tank has finally arrived. I still have to finish off the rewire, but the end is near!

this is the only picture you're gonna get till i get it running and some decent pictures done.

Thursday, 25 August 2011

micro switches

I have mounted some microswitches as part of the lever bodies. These activate relays in the bike's rear!

I had a problem of isolating them from the elements, so I went on a tour of Maplins (radio shack) and found some micro toggle switch covers. I pulled the rubber part off the metal body and fitted that to the switch

the next problem was how to keep it there. I used silicone at first, but it didn't take. I even used super glue...nah!:(

I hit upon the idea of using shrink tubing.

a quick blast on the hot air gun and looks the dogs

not much to do now except finish the connectins and test the circuits

Monday, 22 August 2011


well folks, started the rewire and will add the stages as and when I complete them. If I do it this way, I can remember what I did rather than trust my crap memory.

this is without starter, indicators and with an ignition relocation.


This is the most important stage of any rewire, plan! boring I know, but absolutley necessary.

first make sure you have all the bits on your bike, no good if the engine is in london and the frame in holland. get it built!

1. make out a shopping list in excel, what size of wire, how long and what is its job and how is it going to be protected from the elements and will it look good too?

I use vehicle wiring products for everything, saves on postage. this stage took 3 weeks to do. there are 2 types of wire, the older stuff which is thicker per amp rating and the thinwall stuff which, as the name suggests, has a high performance PVC insulation so making the wires thinner, thus lighter and easier to hide!

to work out what you need size wise you calculate watts divide by Volts = amps, don't forget that volts can drop on a bike so I allowed 10volts in the calculation as a buffer.

after sizes you need to keep to a colour scheme. The original one is the best and will help to identify and problem solve further on in the rewire. There are also tracer wires which, when 2 colours are given, the first is the main colour and the second is the tracer or coloured line of the wire.

2. layout

you need a layout of the proposed wiring loom and the best way to do that is make a layout board.

this gives the length and width of the bike's frame and allows you to visualise the layout and route of your proposed wiring.

here's mine;

i stuck labels on the board indicating the actual device to be wired and any obstructions there. That way the length of wire can be calculated more acuratley.

If anything is lower or higher or wider than the board, I add a label , say what the device is and write + 80mm for example!

first componant

I started with the alternator wiring first, I think its the trickier part of wiring and its full of oily mess etc.

first things first, you need tools

wire snips, some insulating tape, scissors, soldering iron with solder and flux, heat gun for shrink sleeves and wire strippers.

after measuring what I needed, I used yellow tinned thinwall in 1.5mm which equals 21 amps. its more or less the same as the original, but tinned wall is soldered right along the whole length of the wire and is inpervious to water and oil etc so it should last in the environment near that front sprocket!

I started on the stator first. i snipped the wires and degreased using some carb cleaner I had lying around. the wires go through the rubber grommet then you thread on a piece of shrink wrap.

I then fluxed both ends and splayed them out a bit ( you don't want to join it side to side as there isn't much room nestling in the cover) the ends were brought together and solder applied.

I did this for 3 connections, the 4th one is redundant so i just cut it and added a shrink tape on end to leave it terminating within the grommet.

did the field coil the same way as the stator.

this picture shows the stator in the cover and you can see why i needed to make sure the wires didn't over lap

the finished article.

the neutral wire was measured from the field coil as per original and I used shrink wrap and PVC tubing, both before and after the neutral wire.

when you get long length of wires, every 500mm just put a bit of insulating tape there to stop a tangled mess. I used PVC covering on these with shrink tape on each end to stop any ingress of water etc.

the next stage is to get out your notes, wiring diagram and some masking tape.

for this stage you need to work modular, which means you take each componant separately or your head will spin

I did the longest wires first and decided on the routes they will take.

For my rewire, the lighting system is going down the left side, the ignition, brake wires and earth lead down the middle. This way, if I have any issues at least I only need to tear into one part of the loom and not compromise all of it.

Here are some pictures of wires on the layout board, don't forget work on each component at a time.

I came to realise early on that the main lamp switch will be carrying some amps and this wasn't anticipated!

The relays will use the switching part only on low amp cable.

I need to get 1.5 mm tinned thinwall (21 amps) for the main switch!

I first use masking tape to layout the wiring and used the same to write on each wire end what's it for, where's it come from. for example; live feed to brake switch.

wrap the wires as you go, masking tape is easy to tear so you can undo/redo as many times as you need.

where a wire leaves the loom, wrap masking tape there, eventually I will use a strip of insulation tape to secure this.

don't put any connections on at all!!

you will need to

1. double check that the loom fits the bike (phsyically check it)

2. PVC wrap or tubing needs to go on in small lengths due to wires exiting along the loom

3. don't forget to put heatshrink tubing on too

a few more pikkies of the board

frame fit

finally got the extra cable and completed the loom layout. The next job is to offer the bare loom to the frame to make sure that the wire breakouts are at the correct position and it fits.

after checking the route and layout on the frame, I marked any changes by using the insulating tape on each breakout and significant change on the loom, EG the start of braid.

bring the loom back indoors and now this was the hardest part of the rewire!

accept you will cock this bit up, I spent all day threading PVC tube over the wires, only to realise that I should have put heatshrink tubing on or tape.

start from the middle of the loom outwards

there will be places where you cannot put any tubing on, and this is where you use the non adhesive PVC tape.
Start this from the middle outwards as the wires become taught and some start to ride up. Don't worry about this as all you have to do is undo the insulating tape at the end and rebunch the wires together! (that's if you started from the middle of the loom)

wrap the tape really tight and it will look the dogs, finish off with some heat shrink tubing at the end.

Be really patient with this and take your time, have regular breaks etc.

hope fully it will look something like this

Looks like nothing doesn't it?

It bleeding took 4 hours to do

still the eye is in the detail and I well chuffed it turned out as I hoped

next job is to connect all the components with bullets, spades and solder!

Monday, 25 July 2011

engine in

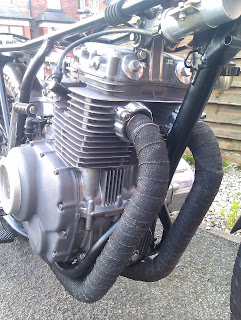

got the engine in, downpipes wrapped

Painted the exhaust with some BBQ spray paint from B&Q this stuff is great. I had to let it air dry for 1 hour then had to heat it for another hour. I just got the blow torch on it and it never flinched, cured the paint and its rock hard like a ceramic coating.

Thursday, 7 July 2011


whent to put my cyl head on last night and the damn thing won't go on. For some reason the engine is slightly back in the cradle of the frame and the head hits the tubes before the studs can go through the head!

Looks like I'm gonna have to get the engine out of the frame to build up the motor and remount the engine complete.

never mind could be worse I suppose

managed to get the engine in 23/7/11, exhausts on, carbs on.

wrapping downpipes next, then the dreaded rewiring!

Saturday, 2 July 2011

Nylon swingarm guide

Got myself a piece of 6mm black nylon today and made a swingarm saver. This is because of the way the bike has been raised which brings the top chain run close to the swingarm.

I cut out a cardboard template and used the exsisting 6mm bolt hole normally for the chain guard, fabricated the guide. As a "piece de resistance" I also got the heat gun out and moulded the front end around the swingarm.

Managed to lap in the valves and get them fitted.

Next I need to de-grease the head and prep for painting!

Sunday, 26 June 2011

bottom end in frame

Managed to get the bottom end in the frame weekend with the help of the wife.

put on the new clutch side case and looks pretty sick!

also installed the new chain and front sprocket. The chain is going to thrash on the top of the swing arm due to the longer shocks on the back

Friday, 24 June 2011

honed the bores

Got a honing tool from a friend today and honed the bores.

what an easy job that is.

The job was quicker than picking it up in the first place.

finally got the caliper bracket back from milling and have fitted it. everything fits (just) as I can see daylight between the caliper and spokes and also between the fork mounts and disk bolts.

I'm polishing the cyl head fins ready for rebuilding/cleaning and then painting.

I'm gonna get the barrel fitted soon and put the engine in the frame. When the engine is fitted, its 'lectrics

Saturday, 11 June 2011

painted barrels

prepped and painted the barrels today, still need to cut and polish up the edges which have already been pre polished.
